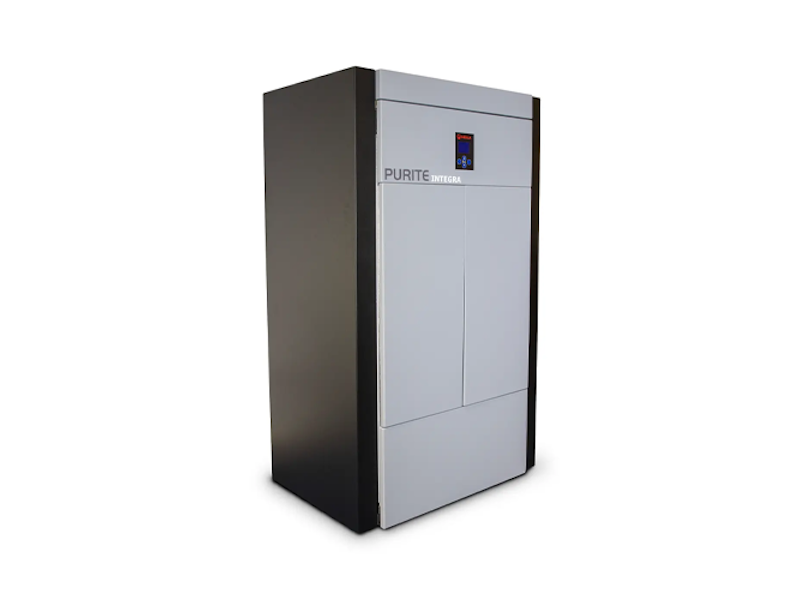

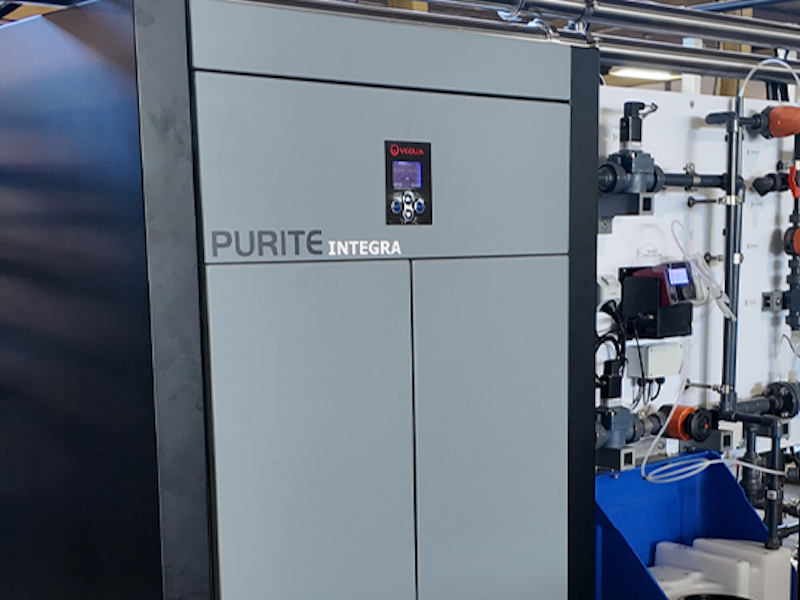

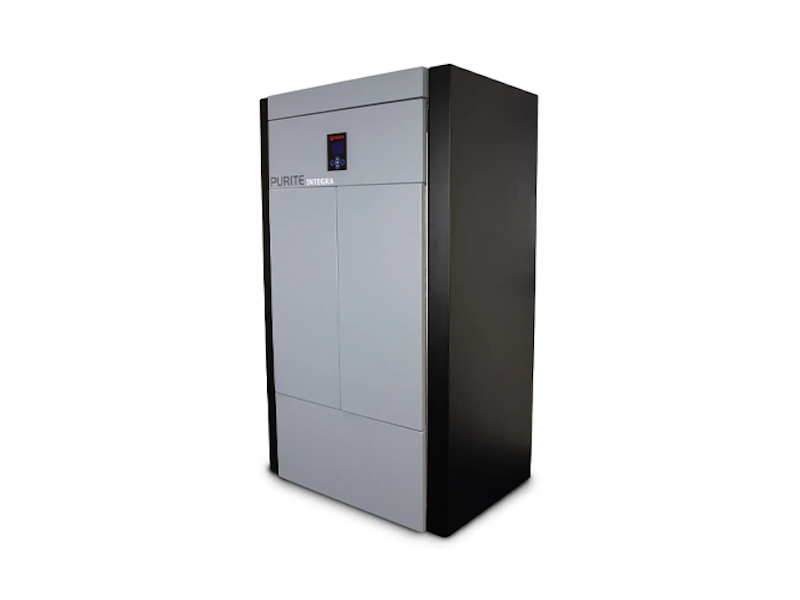

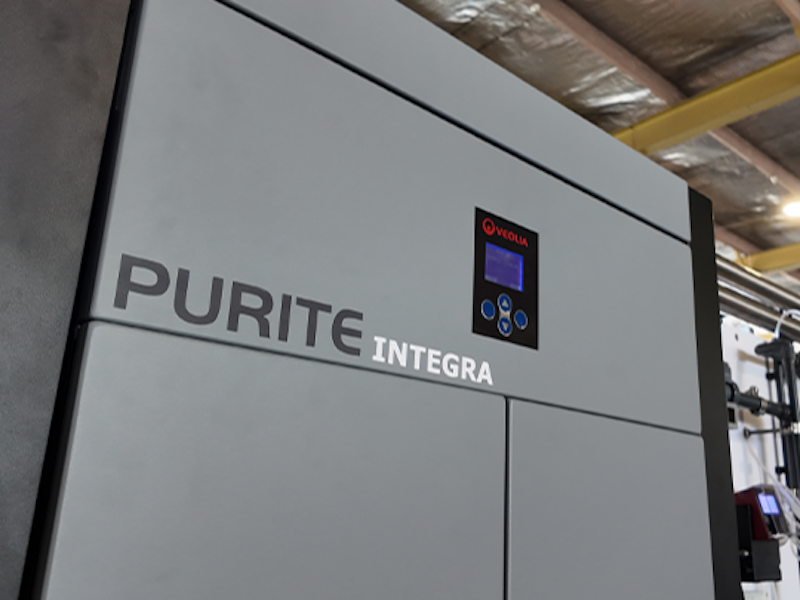

Purite Integra E

The Purite Integra E unit is designed to take potable feedwater direct from the mains, purify it using Reverse Osmosis technology, store it in an integral storage tank and then circulate it via a pressurised ringmain to feed Endoscope Washing machines.

The Purite Integra E is available in 2 versions tailored to the feedwater. The Integra EH is for hard feedwater and the Integra ES is for softened feedwater.

Integral pure water tank – Ensures water is always available on demand. Tank is fully drainable and bacterially protected to comply with HTM 01-06.

Integral raw water break tank with Type AB air gap – Eliminates the possibility of water backflow and complies with water bylaws.

Self contained unit design – All components are integrated into a neat housing, designed to fit through standard sized doors and on wheels for enhanced portability.

Minimal installation and commissioning – All components are factory tested ensuring the unit simply requires connection to relevant on site services.

Semi-automatic chemical clean – With automatic chemical draw, recirculation and rinse, cleaning is straight forward and trouble free.

Bio Sample Point – Incorporation of a hygienic, fully sanitisable, stainless steel, sample valve reduces the risk of contamination during sampling.

Alarm conditions – Critical operating parameters are automatically monitored, including the quality of the purified water and level in the pure water tank.

User friendly display – Backlit display clearly shows the unit operation in graphic and text formats.

Standby mode – During periods of low demand the system will compensate, reducing power consumption and running costs.

Integrated data logging – Up to 12 months data can be captured, enabling a permanent printed record of all parameter and status changes, in line with Good Manufacturing Practice (GMP).
