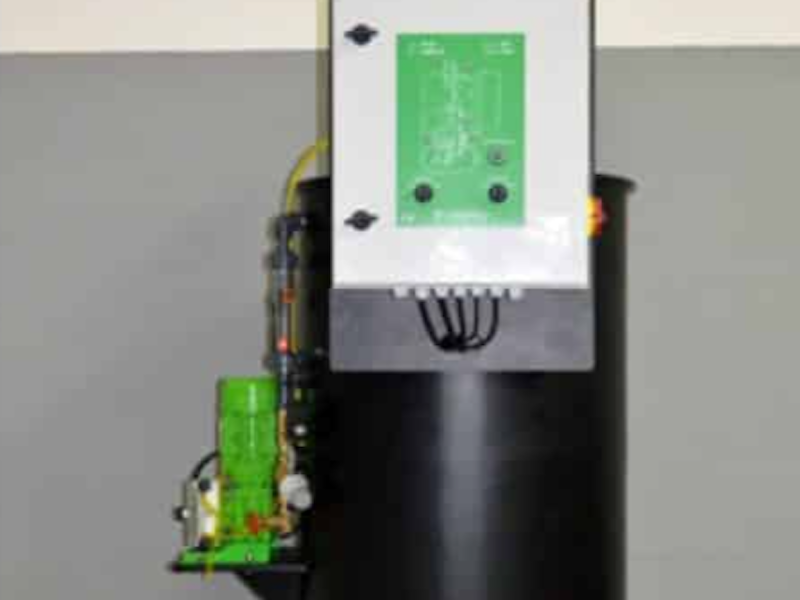

Kozegho Liquid or Emulsion Batch Dilution System

Built as skid principles where all components are connected and tested to make it easy for electrical and hydraulic installations, saving time and money. Easy maintenance and operation procedures make them ideal systems for use in a batch dilution process.

The level of available solution is controlled by an ultrasonic probe on the outside of the tank, which allows the low level to start the reset process by opening the solenoid valve. When it reaches the maximum level, it stops the inflow of dilution water. The batch preparation volume can thus be controlled by the minimum level and the maximum level adjusted at the factory at the time of delivery. Three-phase electrical panel (3 phases, 1 neutral and earth) with Siemens automation. Agitator installed with a Siemens 150rpm gearmotor and transmission connected by removable coupling, 45° flat tetrapá shaft and propeller made of 316 stainless steel. Peristaltic dosing pump with high suction capacity and dosing accuracy with motor-driven and frequency inverter controlled or membrane and pulse solenoid pumps.

Optionally, improvements can be made to the system with additional costs, such as double deck and double propeller, level detector in metering pump, three-phase neutral supply, discharge and transshipment line in PVC, main tank and or PP piping.
